High-performance brushless fan, large air volume, high negative pressure, smooth operation, and a low failure rate.
The push-button version allows for the adjustment of wind volume, while the switch version can be operated by
powering on and pressing the on/off key.
Aluminum alloy impeller: excellent balance, high air volume, and low noise.

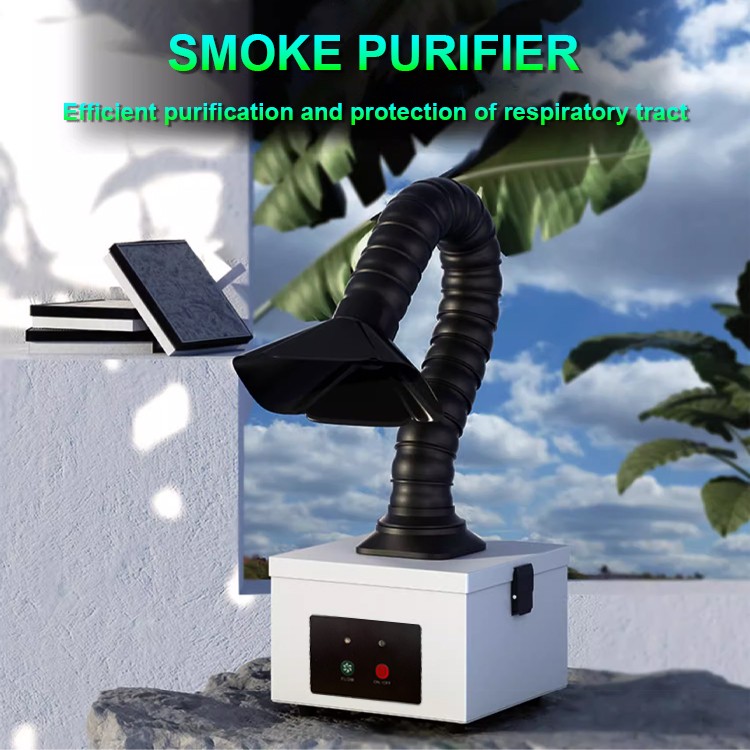

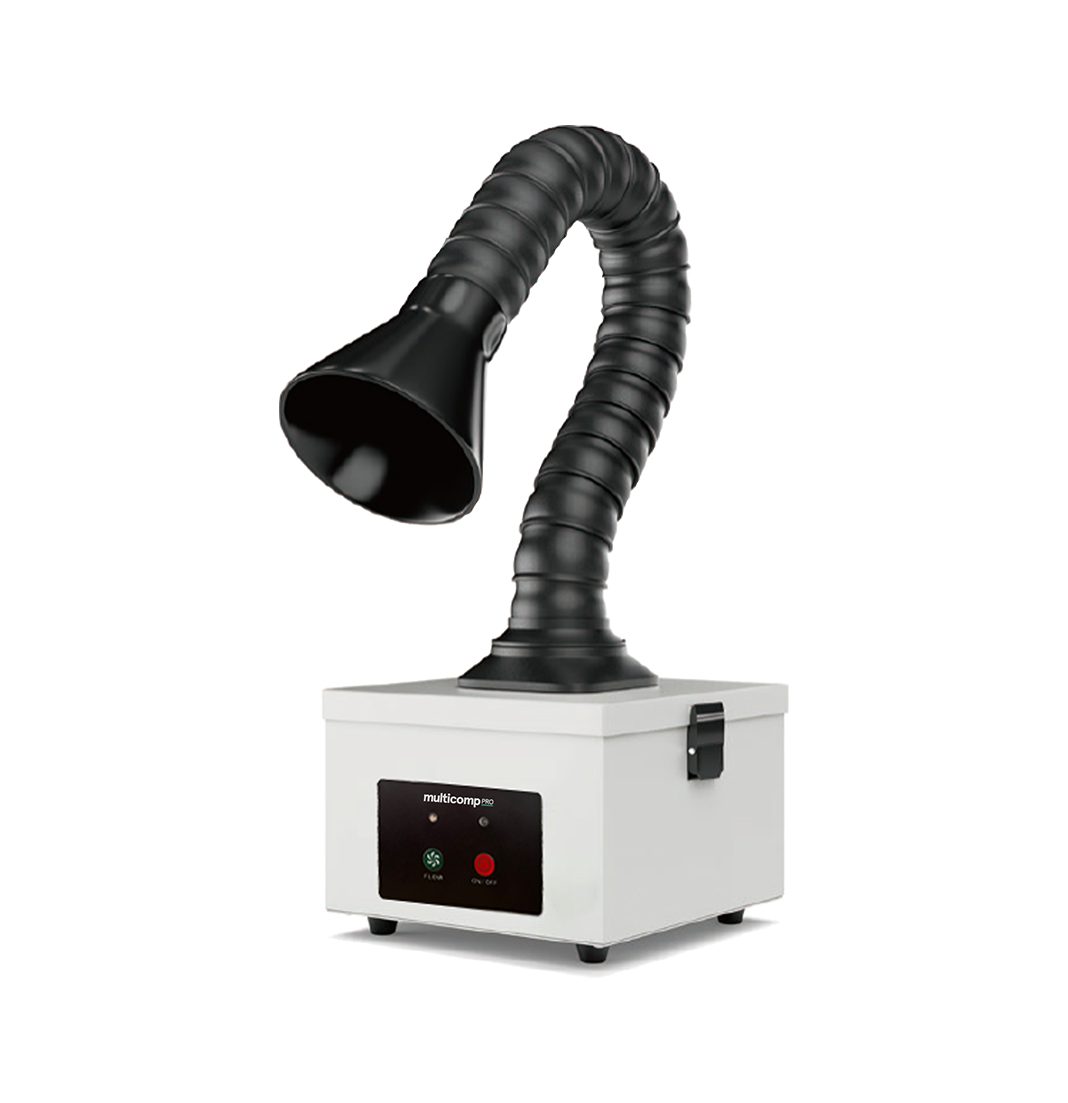

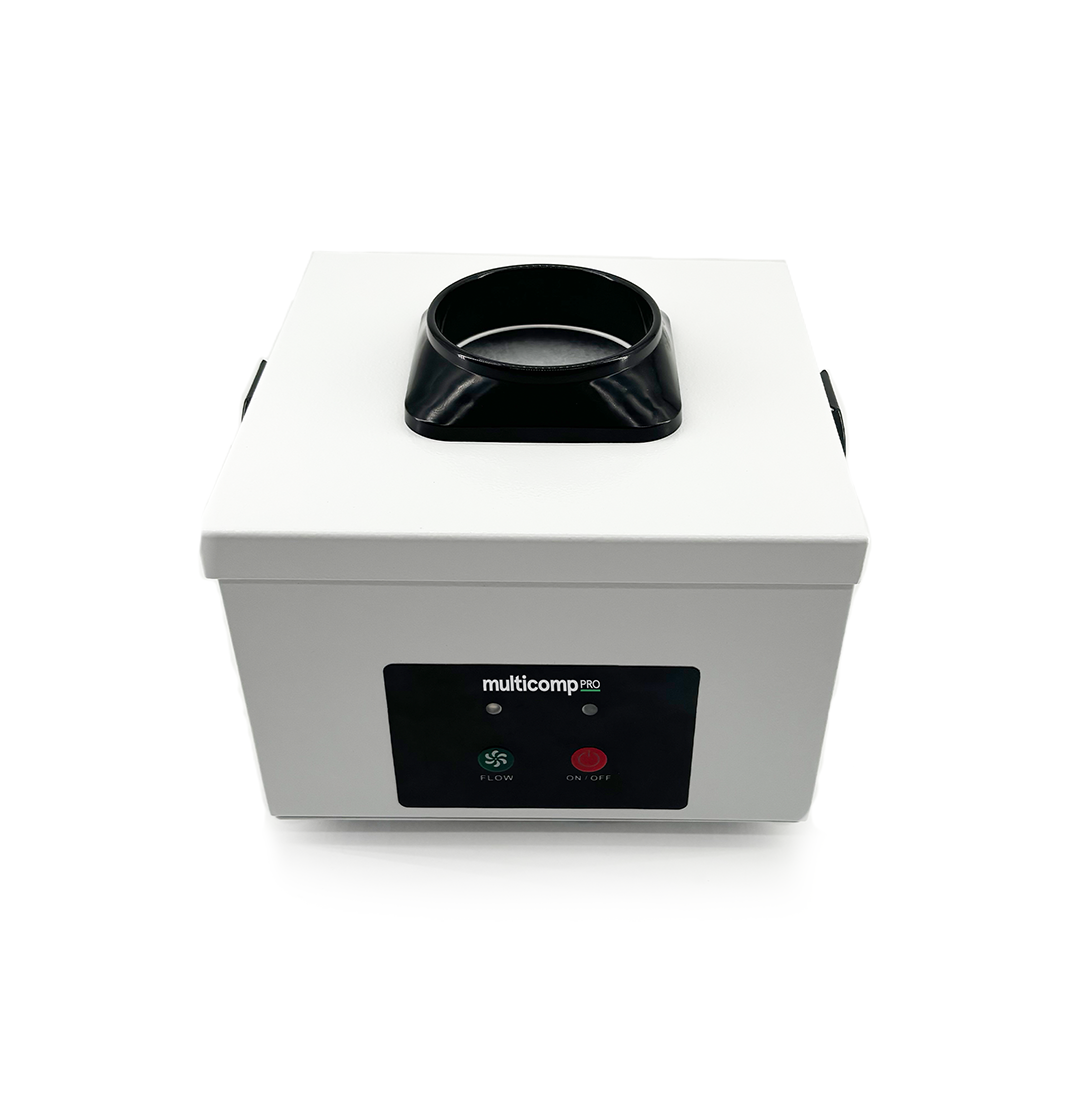

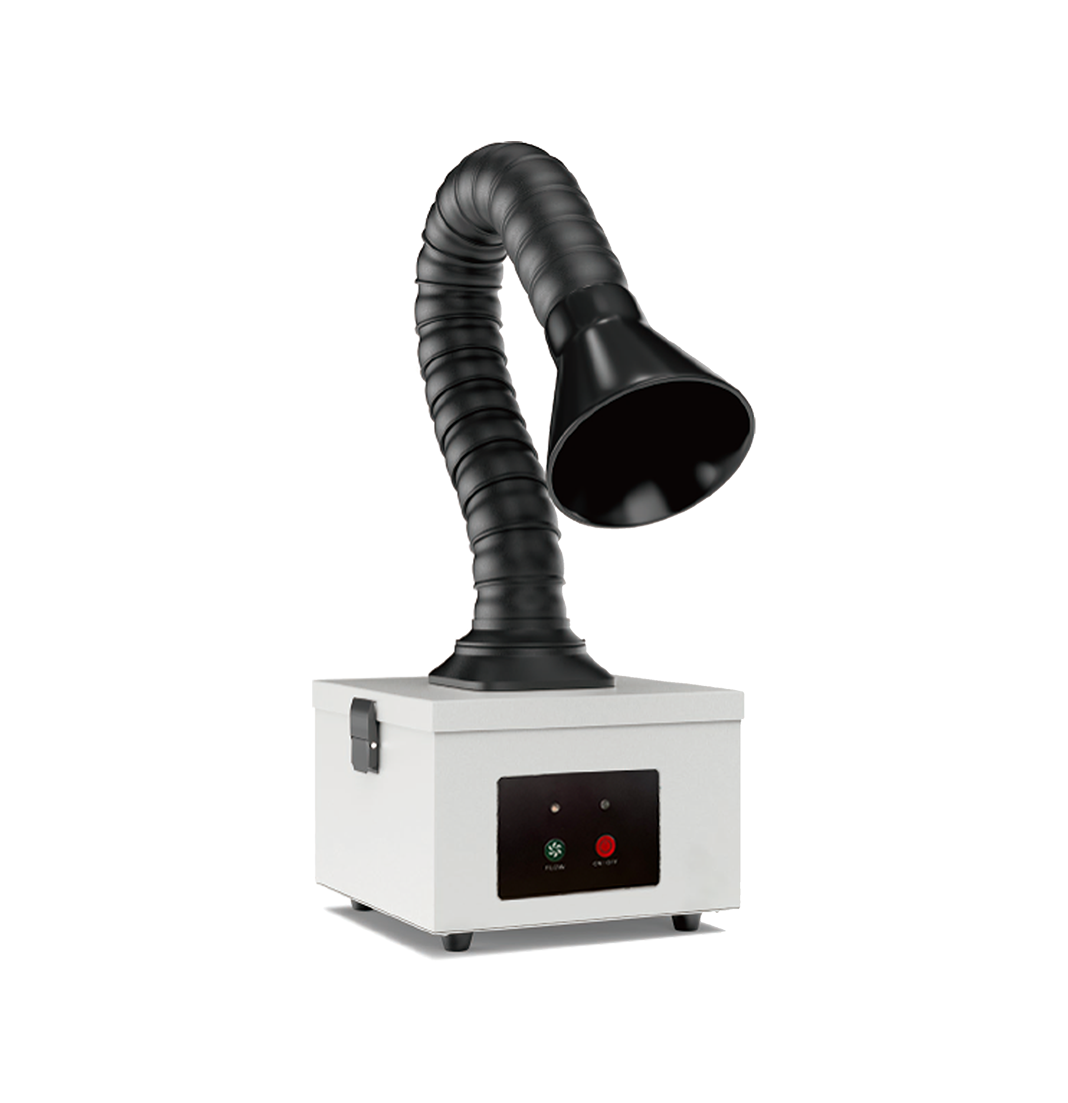

The AX130 fume extractor is a powerful and reliable solution for maintaining a safe and clean working environment. With a power output of 30W, it offers two voltage options (100V/220V) to suit various settings. The extractor boasts an impressive airflow of 138m³/h, effectively capturing harmful fumes and particles.

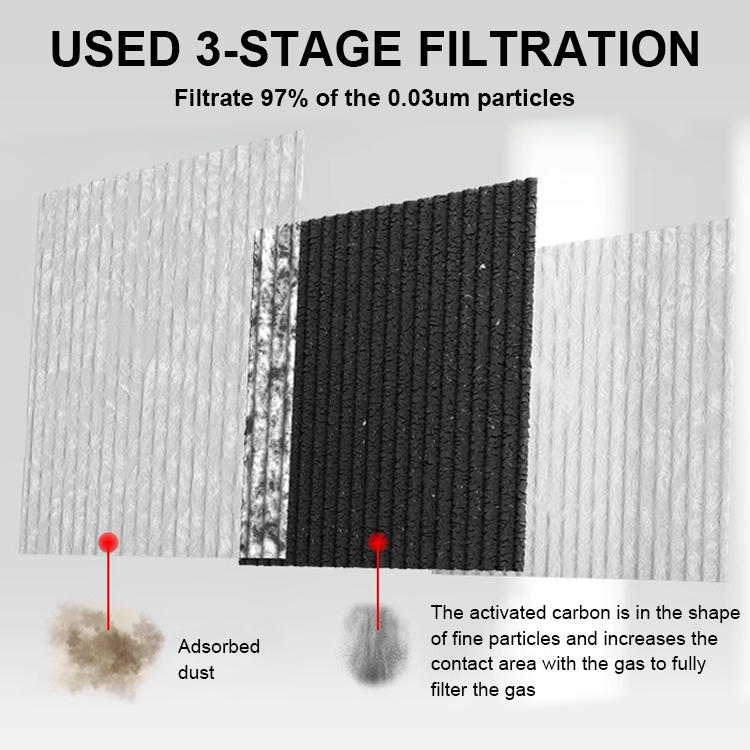

Featuring a single-layer filter with a filtration efficiency of 99.97% for particles as small as 0.3µm, the AX130 ensures high-quality air purification. Operating at a noise level of less than 42dB, it provides a quiet working experience without compromising on performance.
Fume Extractor AX130, Technical parameters
| Power consumption | 30W |
| Input voltage | AC100/220V |
| Filter element layers | 1 |
| Pipe length | 0.5m |
| Air Volume | 138m³/h |
| Air inlet port | φ50mm |
| Noise | ＜42dB |
| Filtering Efficiency | 0.3μm 99.97% |
| Weight | 2kg |
| Dimensions | 175*175*127mm |
| Temperature calibration | ±50°C/±90°F |
| Dimensions | 21*17.4*15cm |
Fume Extractor AX130, Technical features
