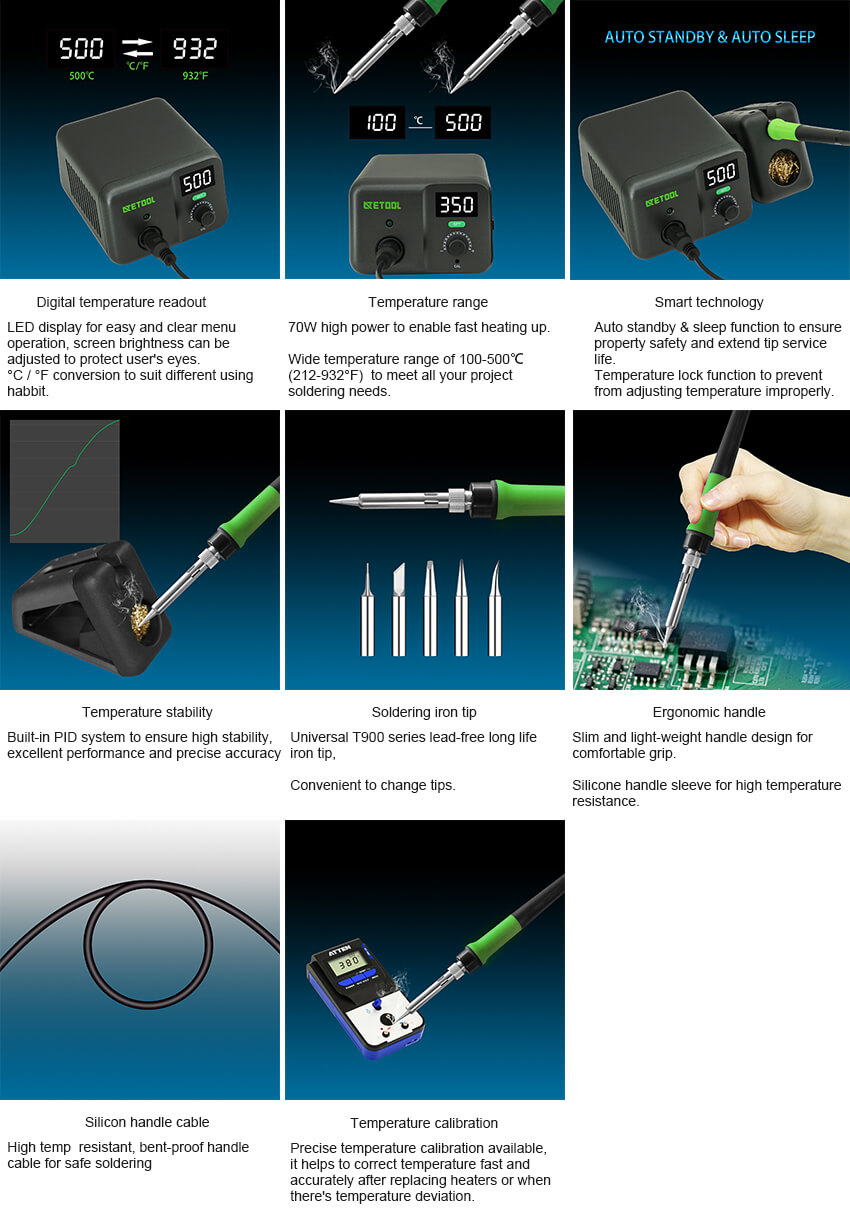

70W high power to enable fast heating up.

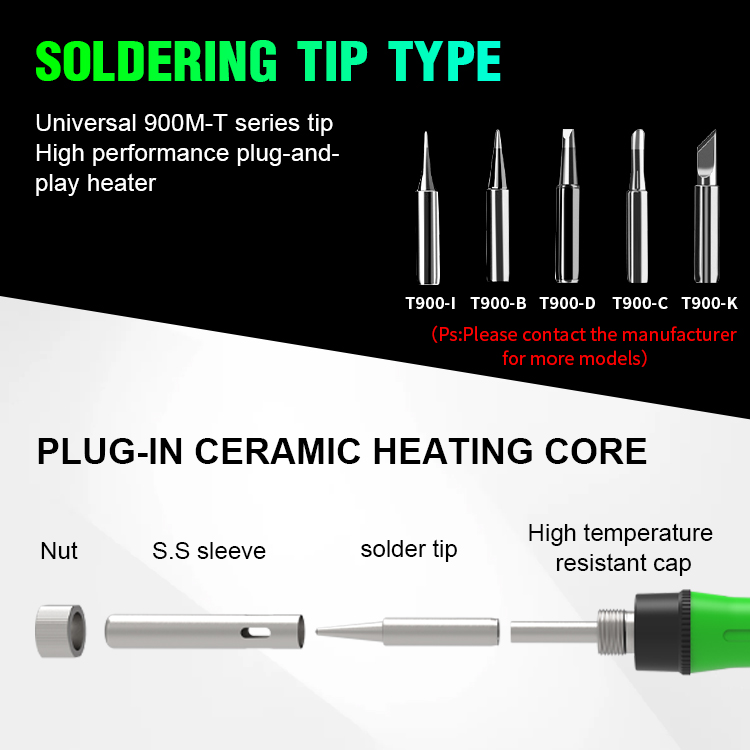

Universal T900 series lead-free long life iron tip, convenient to change tips.

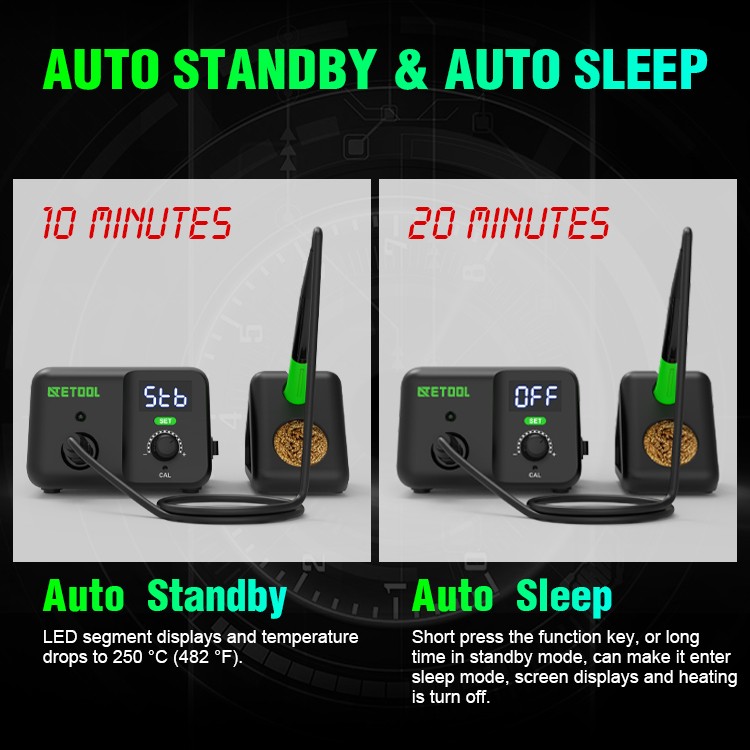

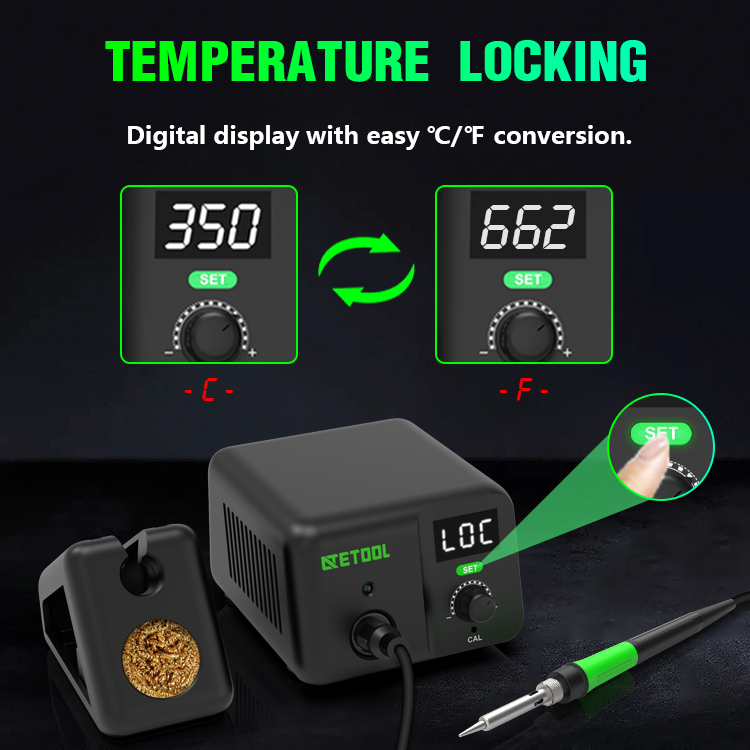

LED display for easy and clear menu operation, °C / °F conversion, auto standby & sleep function, etc.

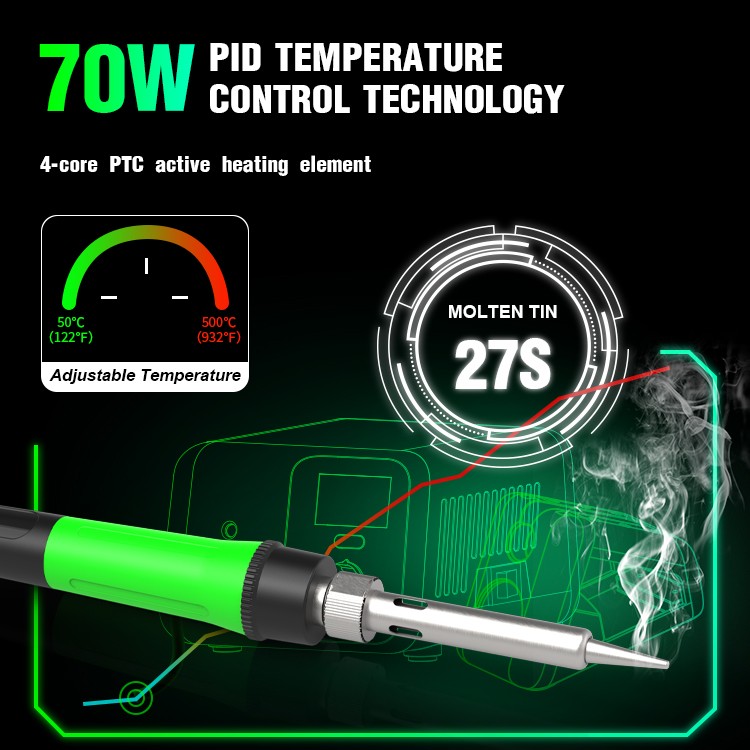

Built-in PID system to ensure high stability, excellent performance and precise accuracy.

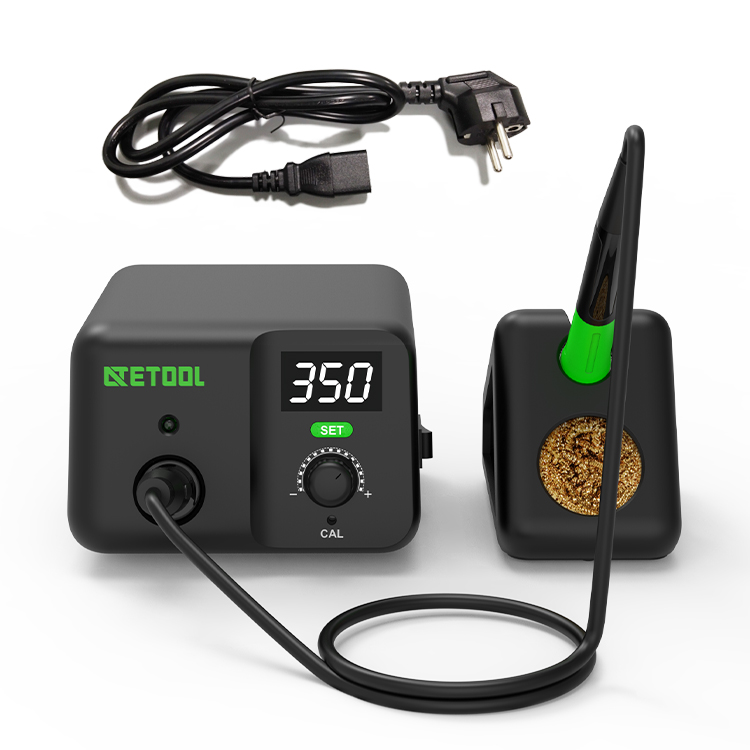

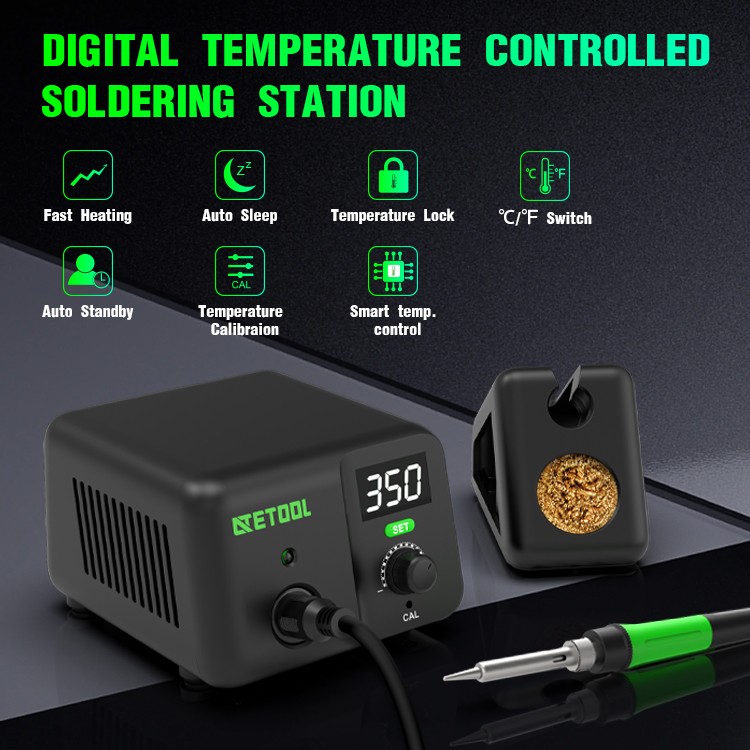

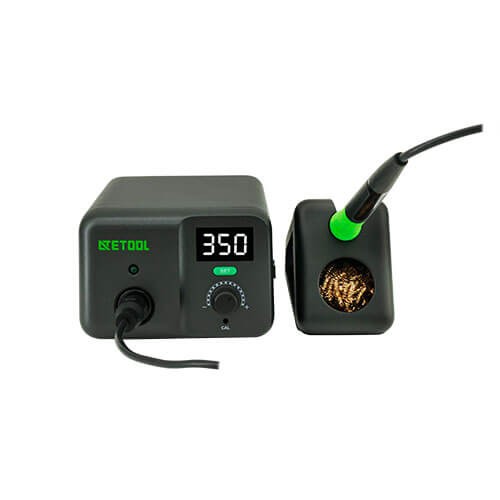

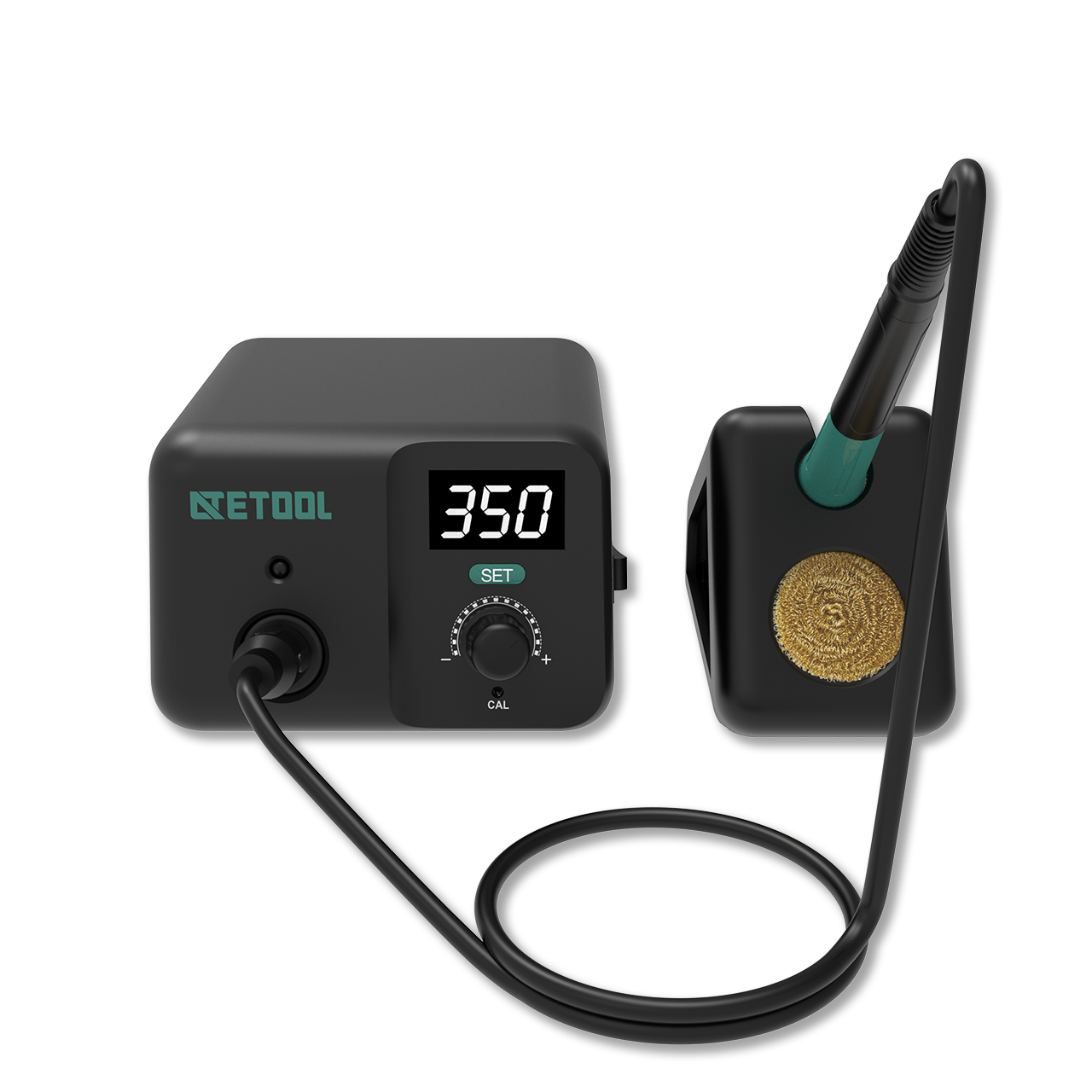

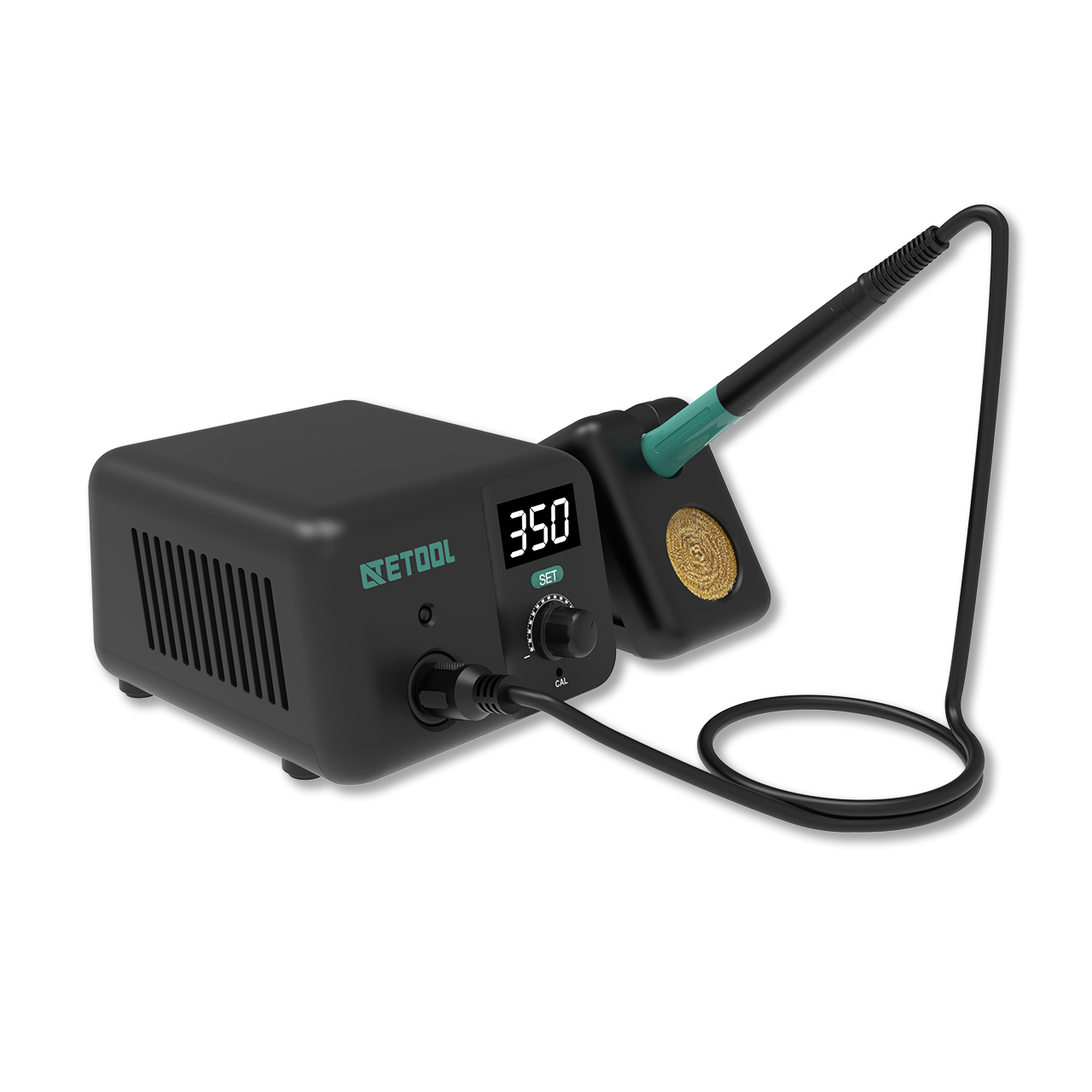

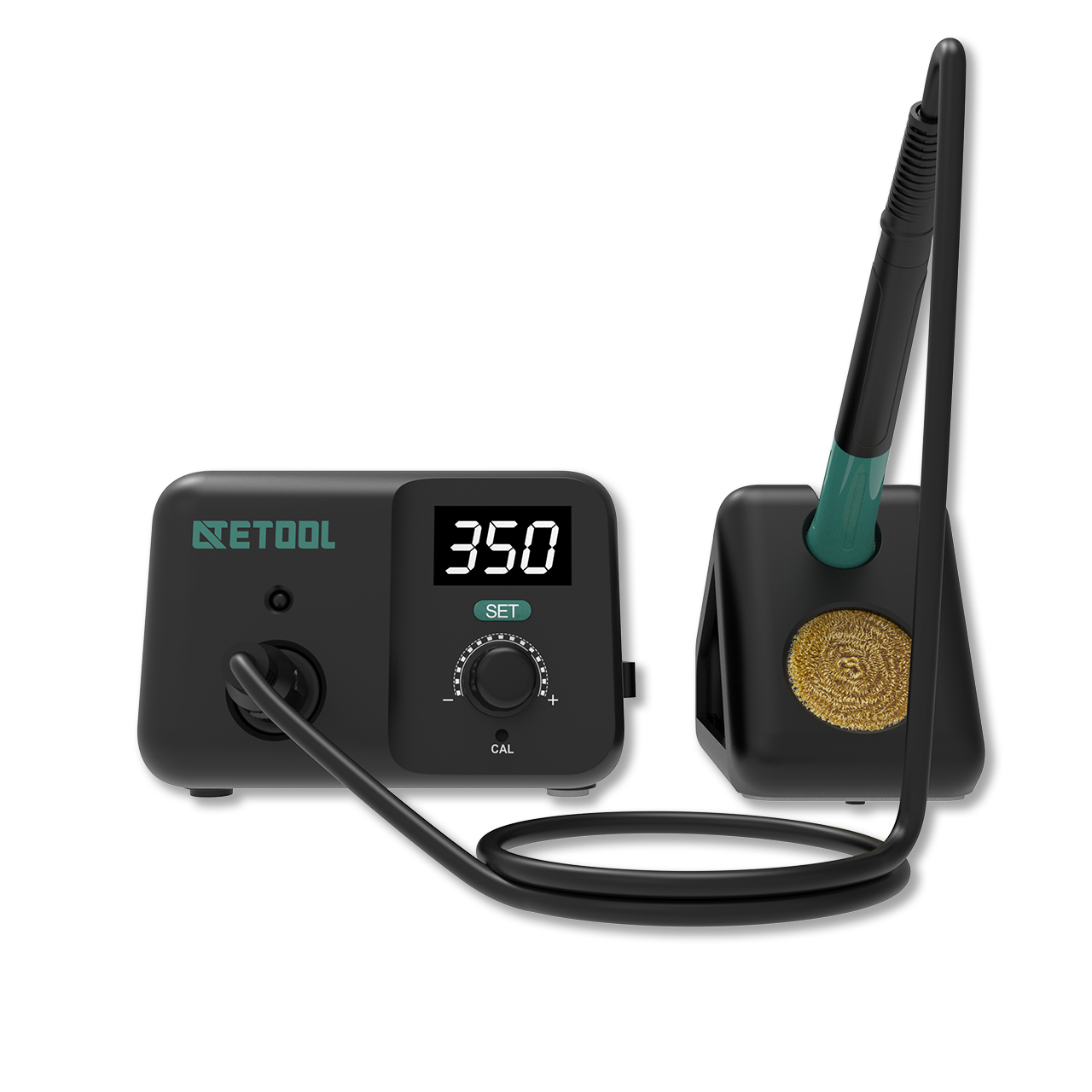

Digital soldering station, AE988D, comes with a heavy-duty soldering iron with a ceramic heating element. By equipping a digital temperature control unit, AE988D enables users to precisely understand what temperature he is soldering, which is a great option for projects where requires temperature limitation. Moreover, with 70W PCT heating element, it could quickly soar to defaulted 350W soldering temperature. Yet it could save your energy as it could wake up or sleep automatically by detecting users' operation with ergonomic-design handle. Wide temperature range of 50-500℃ (122-932°F) could meet all your project soldering needs.
Digital soldering station, AE988D, technical features

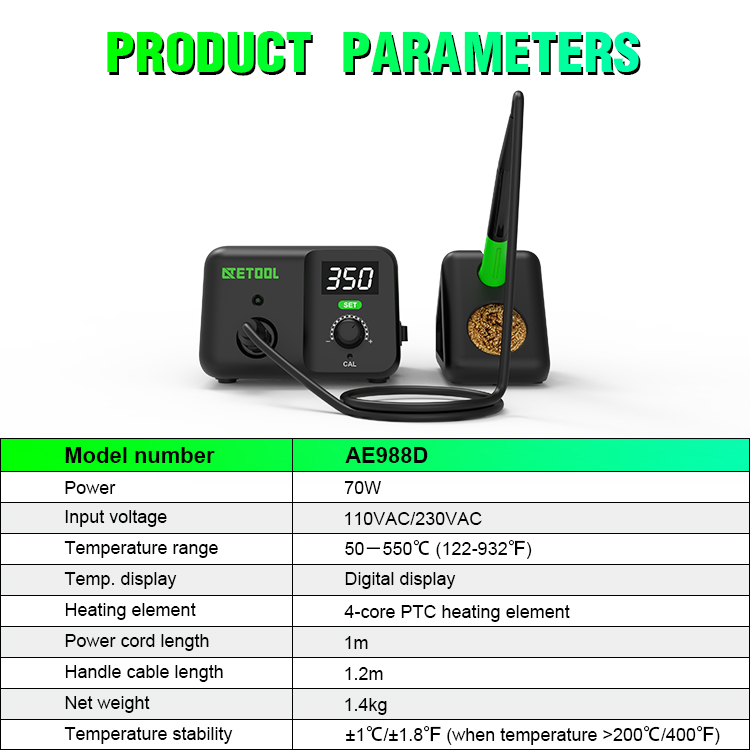

Digital soldering station, AE988D, technical parameters
| Manufacturer | ATETOOL |
| Model number | AE988D |
| Power | 70W |
| Input voltage | 110VAC / 230VAC |
| Output voltage | 25VAC |
| Temperature range | 100－500℃ (212-932℉) |
| Heating element | four-core PTC heating element |
| Soldering tip | 900M-T series tip |
| Product dimension | 148x120x85mm |
| Power cord length | 1m |
| Handle cable length | 1.2m |
| Main unit net weight | 1.33kg |
| Handle net weight | 79g |
| Temperature stability | ±1℃/±1.8℉(when temperature >200℃/400℉) |
| Tip to ground resistance | <2Ω |
| Tip to ground voltage | <2mV |
| Warranty | 12 months |

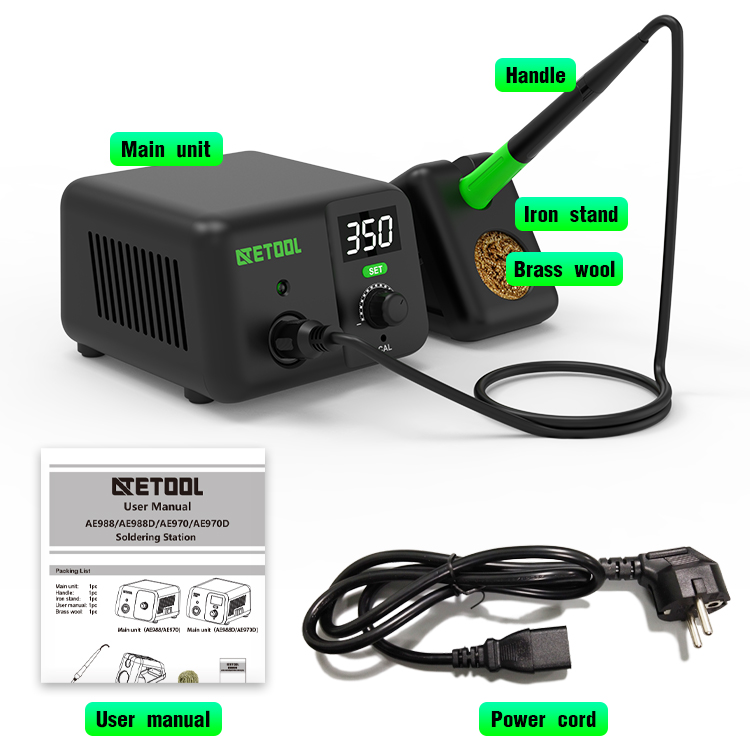

| Packing list | 1 x Main unit 1 x Handle 1 x Iron stand 1 x User manual 1 x Brass wool |
