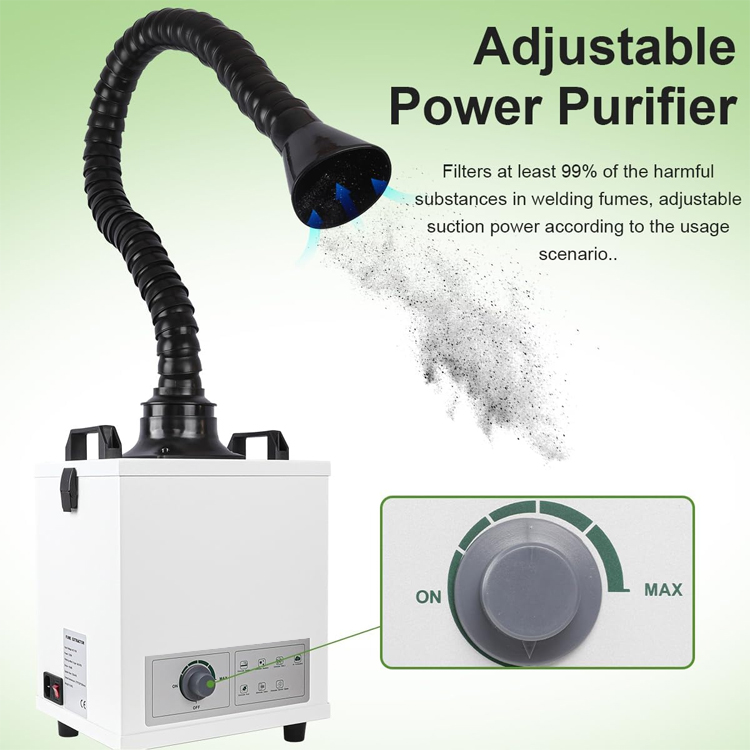

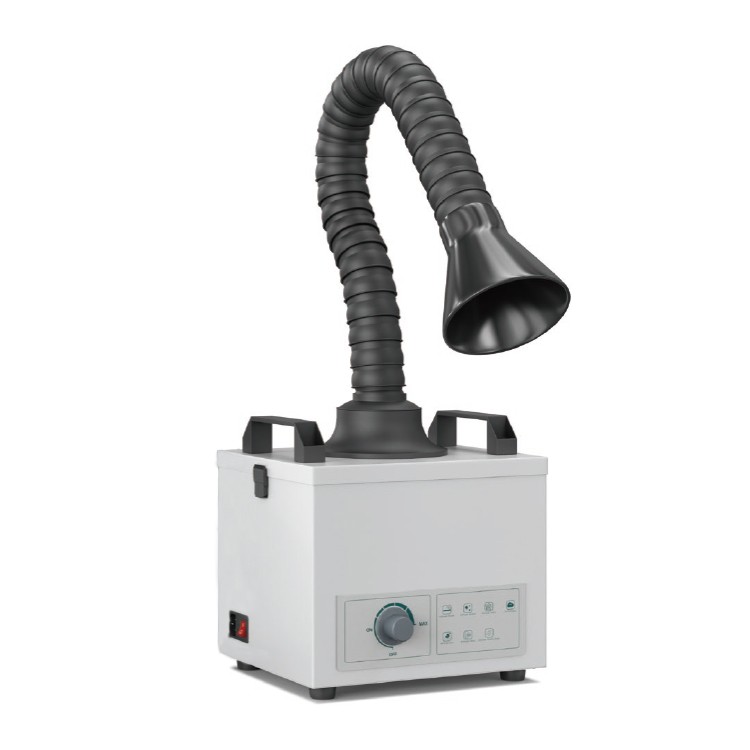

A high-performance brushless fan that delivers a large air volume
The aluminum alloy impeller offers excellent balance, a high air volume, and minimal noise.
Multi-layer filtration with high precision.
Brushless motors offer stable performance and a long lifespan.
Modular filter structure for easy and rapid replacement.

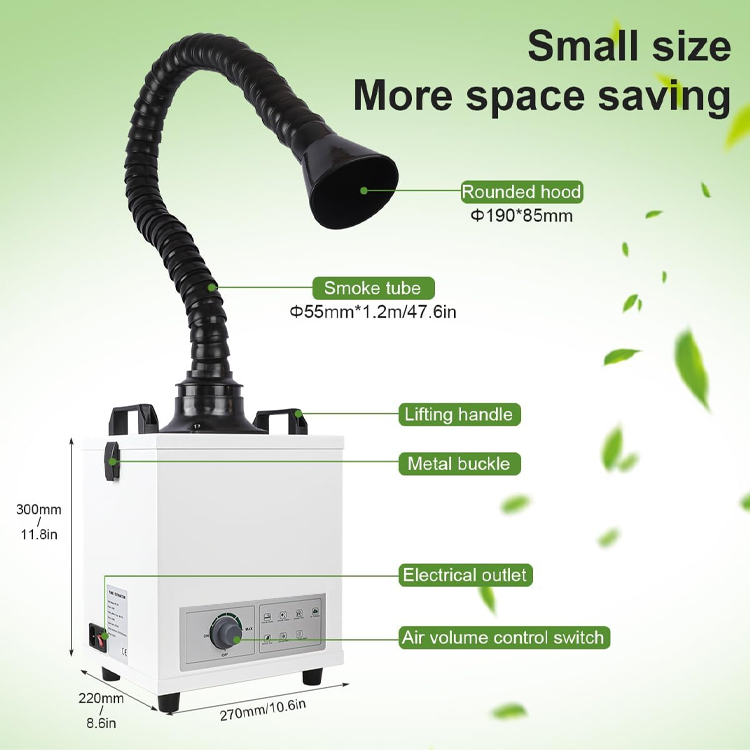

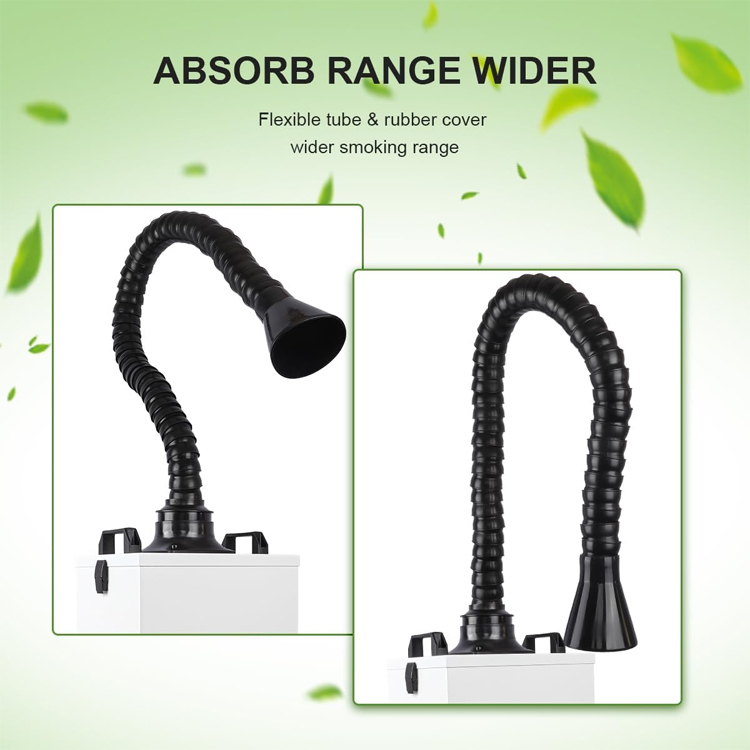

Standard configuration: 1.2M black diameter, 55MM universal suction arm.
This product is suitable for applications that produce fumes, such as smoke, peculiar smells, dust, poisonous and harmful gases, soldering, laser marking, carving, printing, and medical care, among others. With its triple-filter design and powerful suction, the absorption efficiency and filtration ratio can be significantly improved. The purification process can achieve an efficiency of 99.97%. The purified air can be safely discharged directly indoors.

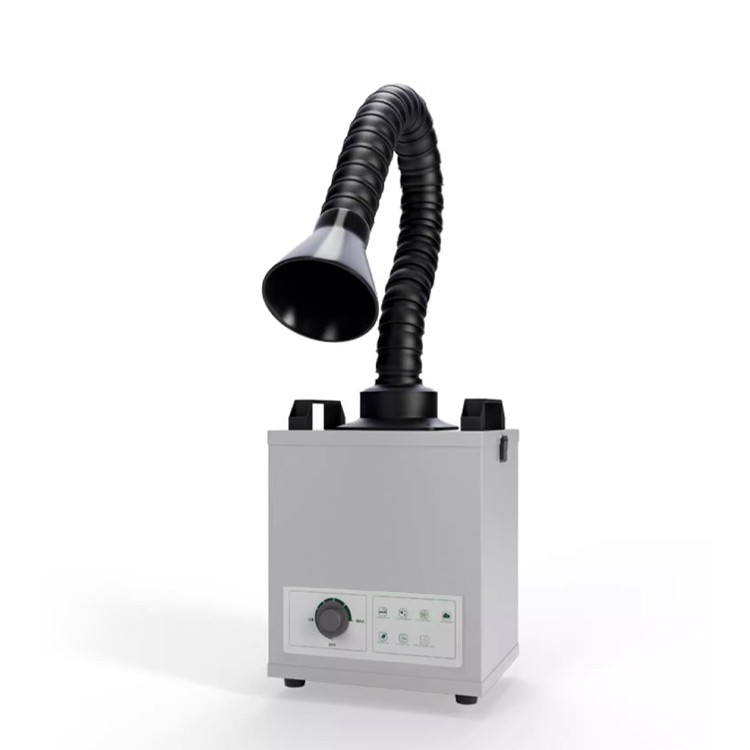

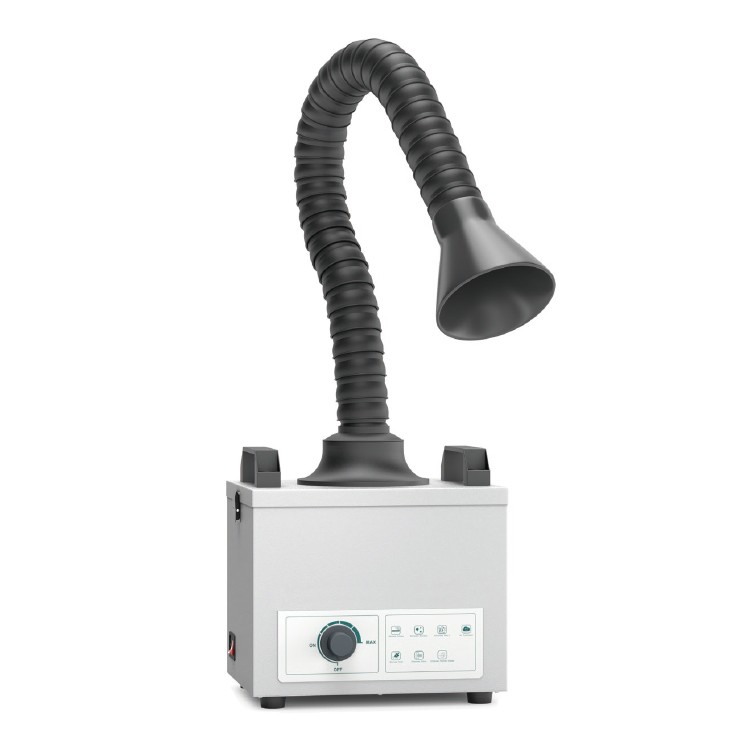

Fume Extractor AX3120, technical parameters
| Power consumption | 120W |
| Input voltage | AC220V/50Hz |
| Filter element layers | 3 |
| Pipe length | 1.5m |
| Air Volume | 235m³/h |
| Air inlet port | φ50mm |
| Noise | ＜50dB |
| Filtering Efficiency | 0.3μm 99.97% |
| Weight | 8kg |
| Dimensions | 270*220*300mm |
| Temperature calibration | ±50°C/±90°F |
| Dimensions | 16.7*14.2*14.8cm |
Fume Extractor AX3120, technical features
