80W high power to enable fast heating up.
Wide temperature range of 200-480℃ (392- 896°F) to meet all your project soldering needs.
High performance plug-and-play integrated active tip, can reach melting point within 9 seconds.
Patented close-loop automatic constant temperature control technology to ensure high stability, excellent performance and precise accuracy

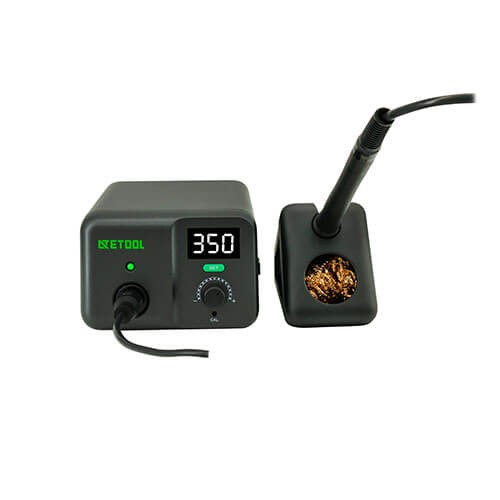

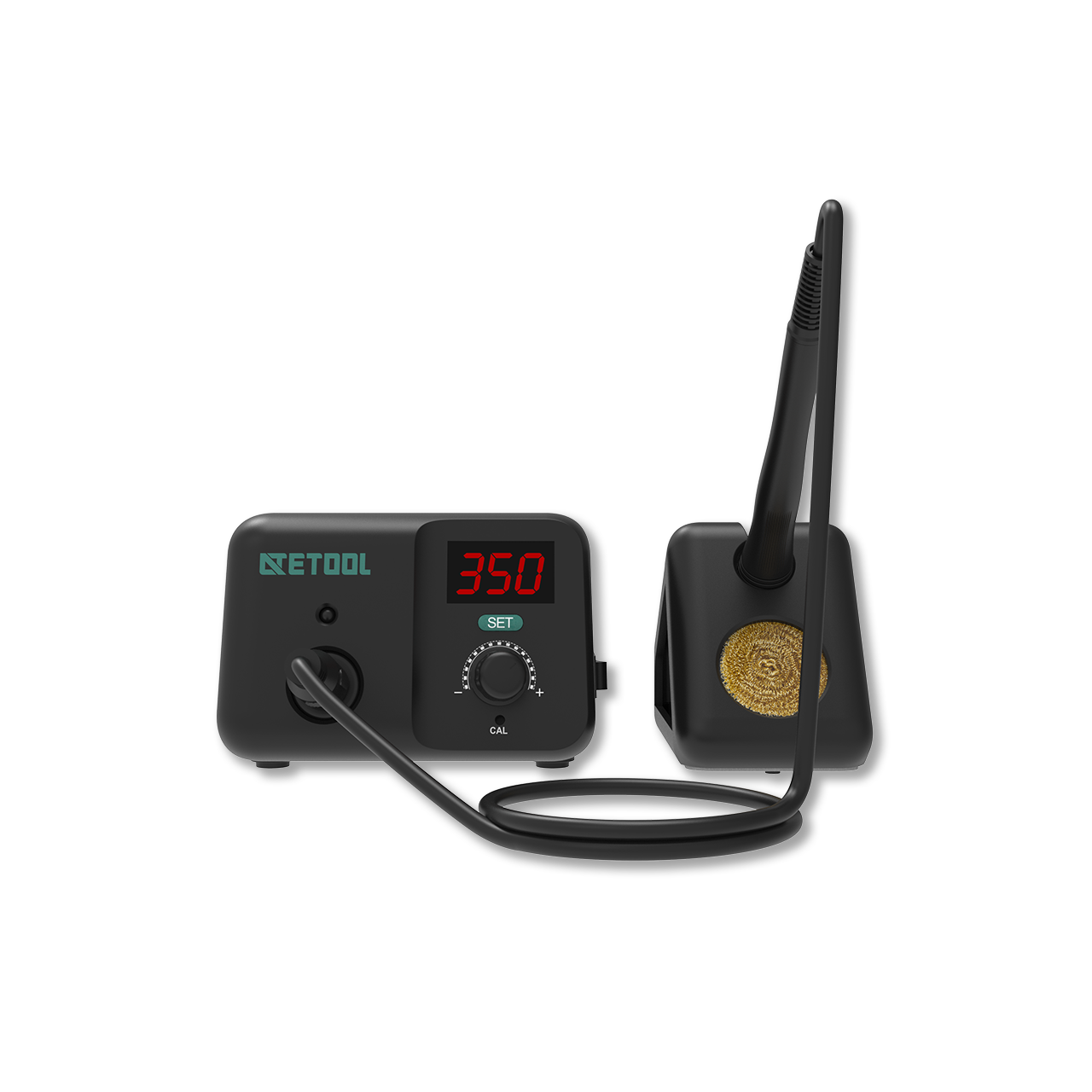

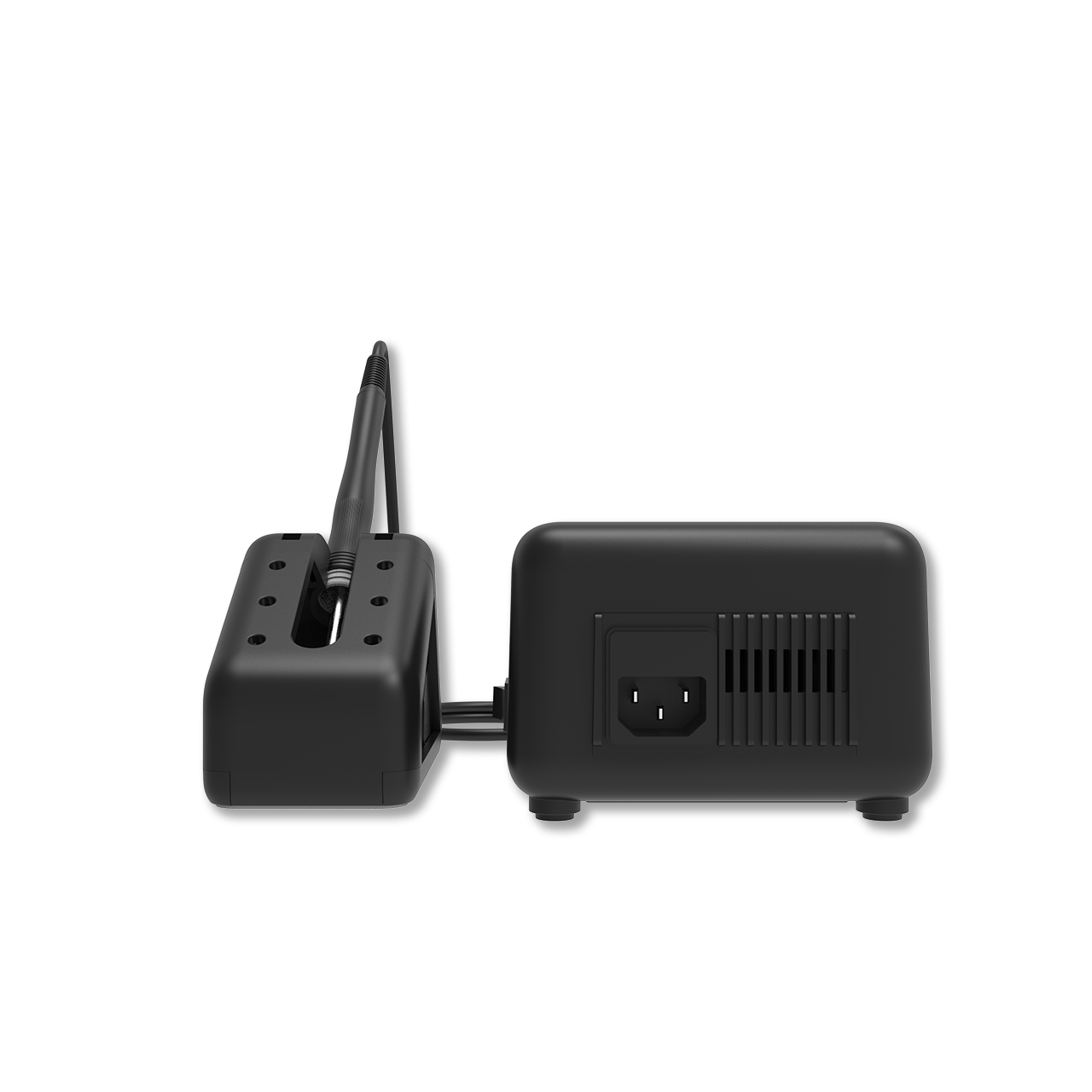

Welding supply, AE970D, is equipped with an 80W built-in plug-and-play integrated active tip. It could quickly achieve 150-550℃ (302-1022°F) temperature to meet all your project soldering needs. You can make good use of LED display for easy and clear menu operation, such as adjusting °C / °F temperature conversion, precise temperature calibration, auto standby & sleep function, etc. It's a powerful welding tool in electronics and electrical engineering, jewelry processing, phone repairing, etc.
Welding supply, AE970D, technical features
Welding supply, AE970D, technical parameters
| Manufacturer | ATETOOL |
| Model number | AE970D |
| Power | 80W |
| Input voltage | 110VAC / 230VAC |
| Output voltage | 25VAC |
| Temperature range | 150－550℃ (302-1022℉) |
| Heating element | T80 series integrated active heater |
| Product dimension | 148x120x85mm |
| Cable length | 1.2m |
| Main unit net weight | 1.33kg |
| Handle net weight | 68g |
| Temperature stability | ±1℃/±1.8℉(when temperature >200℃/400℉) |
| Tip to ground resistance | <2Ω |
| Tip to ground voltage | <2mV |
| Warranty | 12 months |
| Packing list | 1 x Main unit 1 x Handle 1 x Iron stand 1 x User manual 1 x Brass wool 1 x Silicone pad (for tip replacement) |
